5.5 KW – 4SD12/23 – Borehole Submersible Pump End Only

The Hurricane 4SD12/23 borehole submersible pump end requires a 5.5motor to drive it and is capable of delivering up to 90L/min at a depth of 123m.

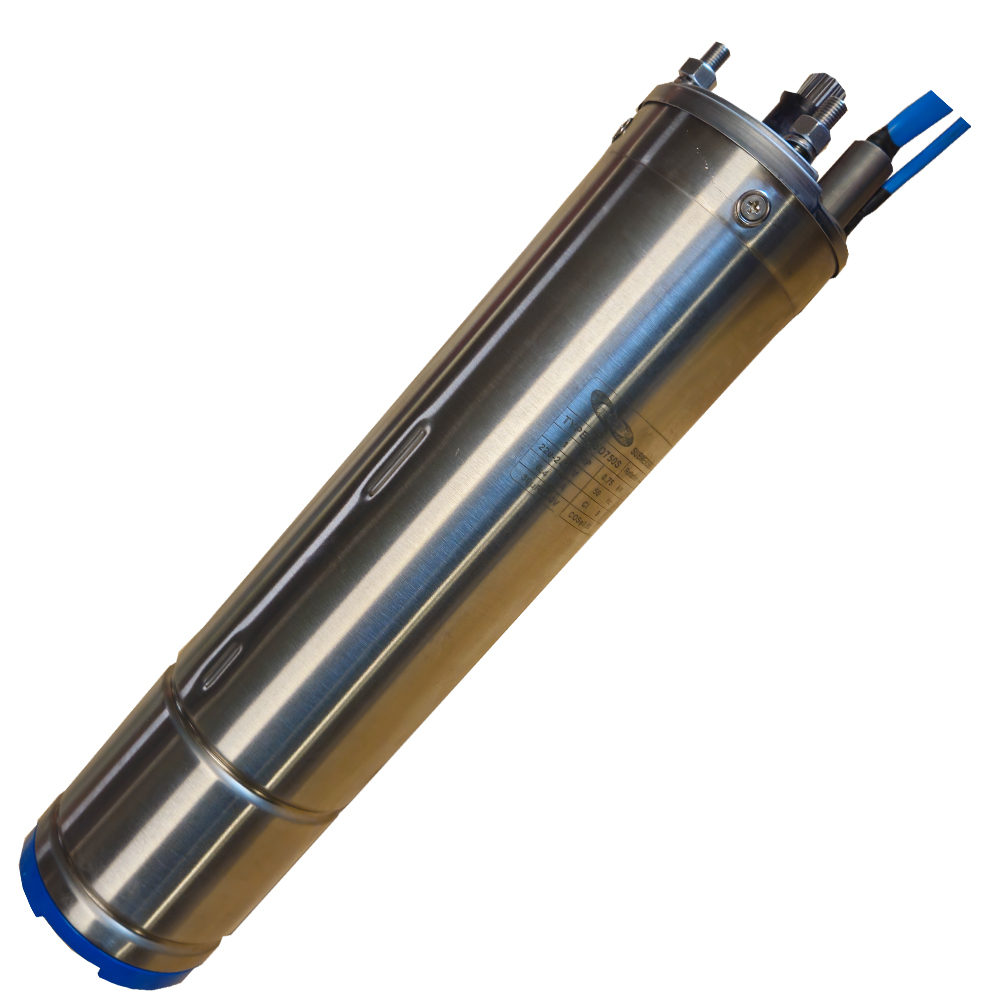

It can be connected to a 380V three phase 5.5KW borehole submersible motor.

Description

The Hurricane 4SD12/23 borehole submersible pump end requires a 5.5motor to drive it and is capable of delivering up to 90L/min at a depth of 123m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 5.5KW 7.5HP / 50Hz
Equip with an automatic control box 5.5KW 7.5HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 5.5KW
  • Power : 7.5HP
  • Outlet : 32mm
  • Pump Diameter : 100mm
  • Pump Length : 1399mm
  • Pump Wieght : 11.5KG
Output 90L/min 180L/min 270L/min
Depth 123m 88m

29m

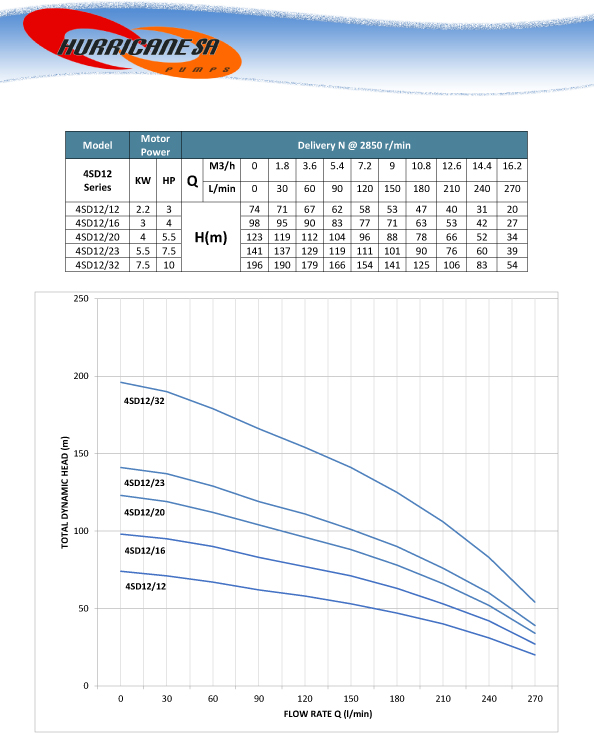

Water Delivery Pump Curve

4SD12/23 Submersible Pump Curve

Additional information

Weight 15,6 kg
Dimensions 162 × 11 × 15 cm
