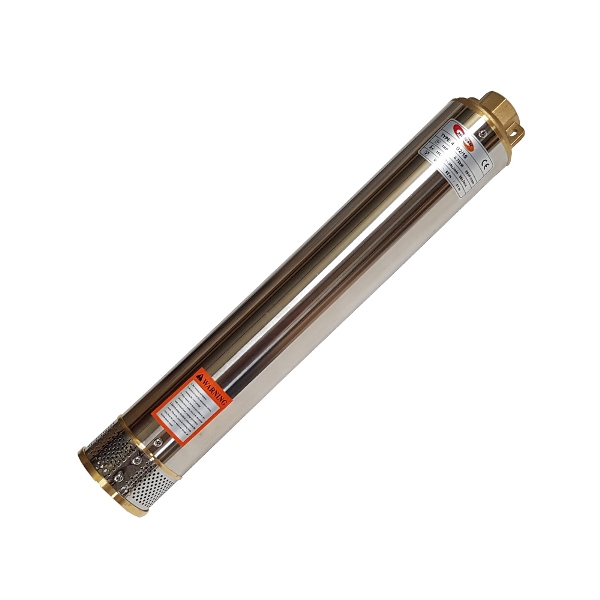

7.5 KW – 4SD8/45 – Borehole Submersible Pump End Only

The Hurricane 4SD8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m.

It can be connected to a 380V three phase 7.5KW borehole submersible motor.

Description

The Hurricane 4SD8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m.

Operating Conditions

  • Maximum fluid temperature : up to 35°C
  • Maximum sand content : 0.25%
  • Minimum borehole diameter : 4″ (10.16cm)

Motor & Pump

Three Phase : 380V – 415V 7.5KW 10HP / 50Hz
Equip with a three phase 380V automatic control box 7.5KW 10HP (water level sensors)

Warranty : 12 Month

According to our general sales conditions

Specifications

  • Speed : 2850RPM
  • Power : 7.5KW
  • Power : 10HP
  • Outlet : 32mm
  • Pump Diameter : 100mm
  • Pump Length : 2044mm
  • Pump Wieght : 17.7KG
Output 60L/min 120L/min 180L/min
Depth 237m 195m 83m

Water Delivery Pump Curve

4SD8/45 Submersible Pump Curve



Additional information

Weight 19,2 kg
Dimensions 210 × 11 × 15 cm
